Camect


Supports Standards

This manufacturer's devices support standards for streaming video and receiving alarms



Standards Based - Features

  • Bulk Alarm Import
  • ResponseCode Matching
  • EventType Matching
  • Attached Alarm Video
  • Live Video

Standards Based- Manufacturer License Requirements

Camect Hub with a Camect Pro Monitoring License
(Talk to your Camect representative if you don't already have this license)

Standards Based - Live Video Configuration

Note: Requires either port 554 to be open or there to be an on-site OpsLink



On Camect

  1. Login to Camect using Chrome and navigate to their "V2 UI"
  2. Click the Settings button on the Camect Hub you wish to configure
  3. Click on the “Cameras” Tab
  4. Click “Enable RTSP Server”
  5. Click “Show RTSP URLs”
  6. Copy the Camera URLs

In SureView

To configure Live Video Follow the steps on the SureView Video Device Setup support page Opens in new window or tab

Set the Port to 554 (default RTSP Port) and the RTSP URL (extra value) to the copied value(s) from the "On Camect" section above

e.g.

041617301cbbc5ca151af/yXoQTn6ZzS1b



Standards Based - Alarm Configuration

First Time Configuration

Create the SureView Standard Decoder

This decoder is usually pre-configured in your SureView Account. These instructions are here in case it needs to be added manually or edited. Please contact SureView Support before making changes to the Standard Decoder

  1. Login to SureView and navigate to the "Alarms" setup screen
  2. Click on the "Alarm Decoder" Tab
  3. If the "SureView Standard Decoder" does not already exist:
    Click "Add Alarm Decoder" and complete the following values
    Title: SureView Standard Decoder
    SureViewResponseCode:\s*(?<rc>[^\r\n]+)
    Event Regex
    SureViewEventTypeCode:\s*(?<ec>[^\r\n]+)
    Default Area: Select your top level area
    (Your SureView Organisation Account Name)
    Default Action Plan: Select your preferred Action Plan or leave blank
    Default Grouping: Select your preferred Default Grouping
    Recommended "By Area"
    Default Priority Enter your preferred default priority
    Recommended: 100

Add the Camect Event Types

These Event Types are normally pre-configured in your SureView Account. These instructions are here in case it needs to be added manually or edited. Please contact SureView Support before making changes to the Standard Decoder

  • Login to SureView and navigate to the "Alarms" setup screen
  • Click on the "Alarm Decoder" Tab
  • Edit the "SureView Standard Decoder"
  • If the following Event Types don't already exist - Add them
    Note: The Event Type Name, Default Priority and Default Grouping can be customised to your requirements but the "Event Code" must match exactly (including case) for compatibility with Camect
    Event Type Name Event Code Default Priority Default Grouping
    InputAlarm InputAlarm 100 Inherit
    TamperAlarm TamperAlarm 100 Inherit
    ObjectDetected ObjectDetected 100 Inherit
    DevicePowerup DevicePowerup 100 Inherit
    DeviceShutdown DeviceShutdown 100 Inherit
    HDDFull HDDFull 100 Inherit
    DeviceDisarm DeviceDisarm 100 Inherit



Camect Hub - Alarm Configuration

In SureView

  1. Login to SureView and go to Alarm Setup
  2. Click on the "Alarm Decoder" tab
  3. Note down your unique "SureView Standard Decoder" email address. by:
    1. Open Notepad (or another note taking application)
    2. Copy the "System Identifier" from SureView and paste it into notepad (it will look something like t3p45bc4gr)
    3. add it to as a prefix to SureView region / web address to make the email address. It should look something like t3p45bc4gr@us.sureviewops.com or t3p45bc4gr@eu.sureviewops.com
    4. This is the email address you will use in your Camect Hubs

In Camect

  1. Login to Camect using Chrome and navigate to their "V2 UI"
  2. Click the Settings button on the Camect Hub you wish to configure

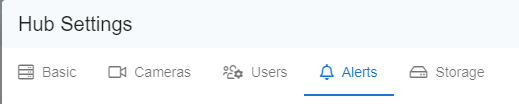

  3. Click on the Alerts Tab

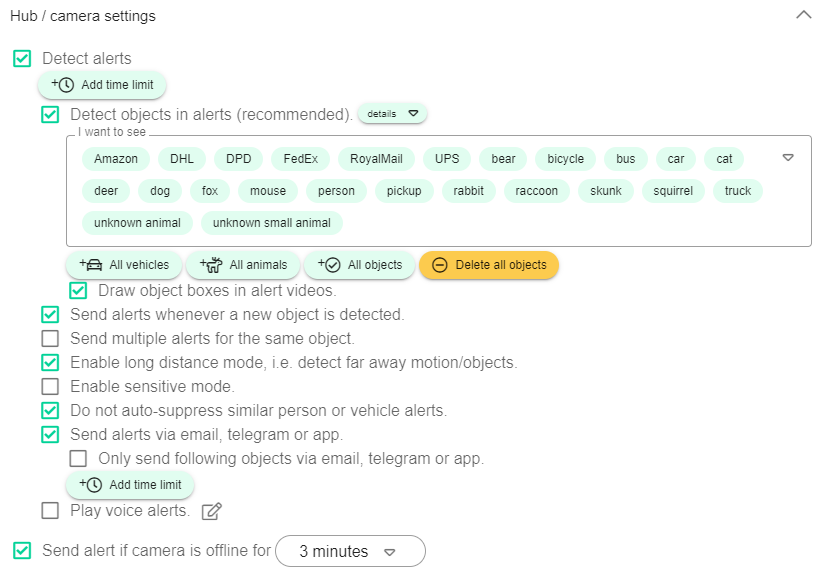

  4. Configure your detection settings as required
  5. Click the "Add monitoring" button and select "sureview" from the list


  6. Select your SureView Response region (US or EU)
  7. Enter your unique SureView Email Address that you noted down when following the steps above
  8. Click Download setup.csv

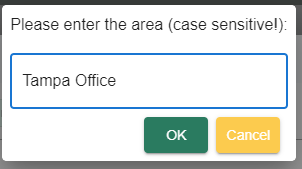

  9. Enter the exact name (case sensitive) of the SureView Area (site) you want to add Camect to and press OK

In SureView

  1. Login to SureView and go to Alarm Setup
  2. Click BULK ADD
  3. Upload the setup.csv you downloaded from Camect
  4. Customise any rows as required
  5. Press Add

Done. You have now configured your Camect hub to send alarms into SureView.
