ArcadianAI

Standards Based - Features

• Alarms
  • ResponseCode Matching
  • EventType Matching
  • ExtraText Decoding
  • Location Decoding

Standards Based- Manufacturer License Requirements

N/A No additional Manufacturer License Required

Standards Based - Alarm Configuration

First Time Configuration

Create the ArcadianAI - SureView Standard Decoder

This decoder is usually pre-configured in your SureView Account. These instructions are here in case it needs to be added manually or edited. Please contact SureView Support before making changes to the Standard Decoder

1. Login to SureView and navigate to the "Alarms" setup screen
2. Click on the "Alarm Decoder" Tab

3. Click "Add Alarm Decoder" and complete the following values

   Title:	ArcadianAI
   Response Regex:	SureViewResponseCode:\s*(?<rc>[^\r\n]+)
   Event Regex	SureViewEventTypeCode:\s*(?<ec>[^\r\n]+)
   Extra Text Regex	SureViewExtraText:\s*(?<et>[^\r\n]+)
   Default Area:	Select the are you would like any non-matched alarms to be sent to.    Recommended: Select your top level area (Normally this will be our SureView Organisation Account Name)
   Default Action Plan:	Select your preferred Action Plan or leave blank
   Default Grouping:	Select your preferred Default Grouping Recommended "By Area"
   Default Priority	Enter your preferred default priority Recommended: 0

Add the ArcadianAI Event Types

ArcadianAI allows for custom event types and are unique for each organisation's account. Once you have your list of ArcadianAI Event Types you can add them to SureView for automatic alarm matching.

The basic matching can be configured in the Decoder setup screen or for more advanced options please go to the Event Types setup screen

Decoder Setup

• Login to SureView and navigate to the "Alarms" setup screen
• Click on the "Alarm Decoder" Tab
• Edit the "SureView Standard Decoder"

• Add the required event types as listed in AcadianAI Setup (examples below)
  Note: The Event Type Name, Default Priority and Default Grouping can be customised to your requirements but the "Event Code" must match exactly (including case) for compatibility with ArcadianAI

  Event Type Name	Event Code	Default Priority	Default Grouping
  UnknownAlarm	UnknownAlarm	50	Inherit
  Alarm	Alarm	100	Inherit

Adding Alarm Points

Once your decoder has been configured you will be able to create any necessary alarm points in SureView. You will normally need one alarm point per alarming ArcadianAI Camera

1. Login to SureView and navigate to the "Alarms" setup screen
2. Go to the "SMTP alarms" tab
3. Click "Add Alarm"
4. Fill in the fields as required (see example table below) and press Add

Example Alarms

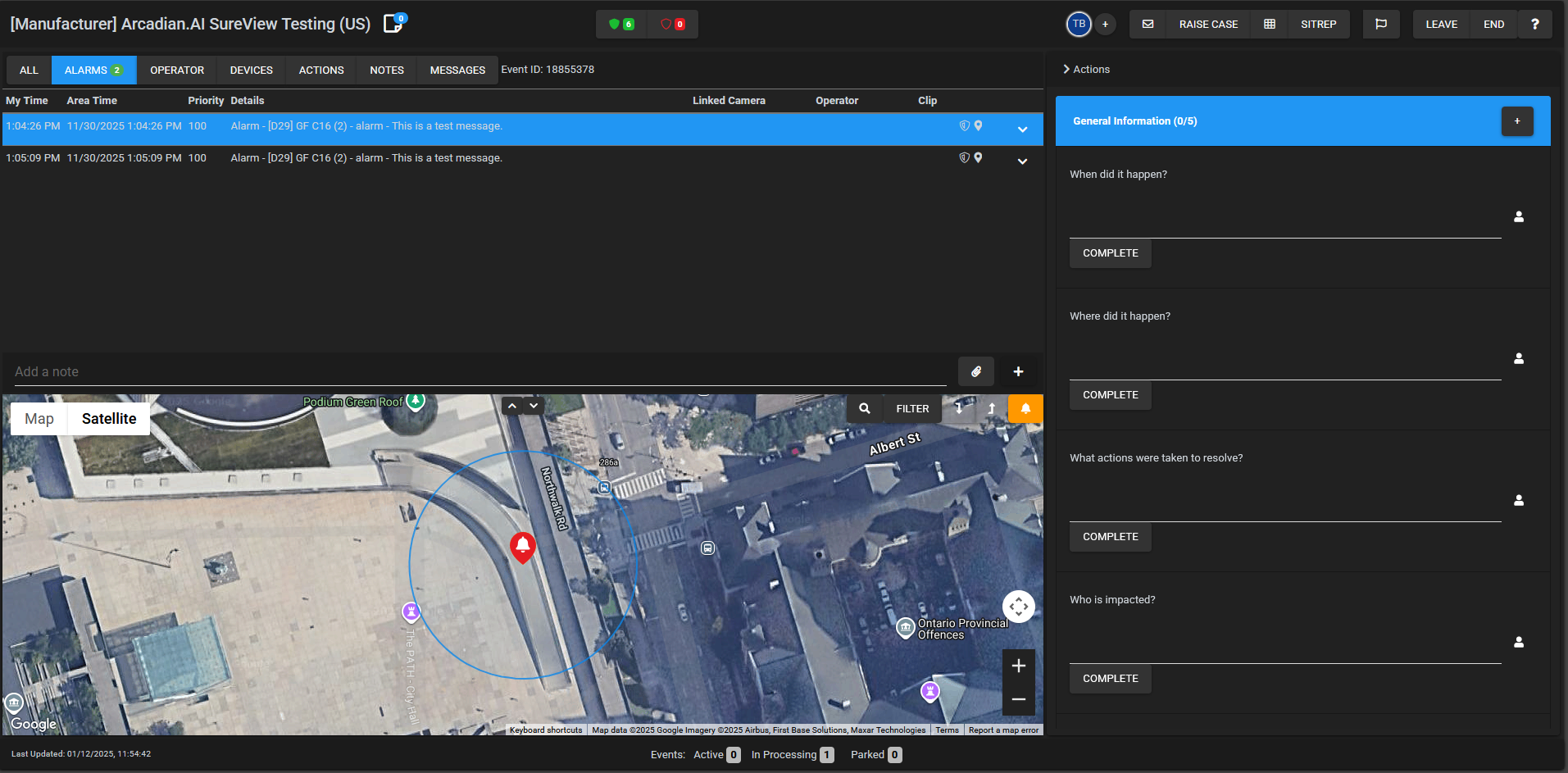

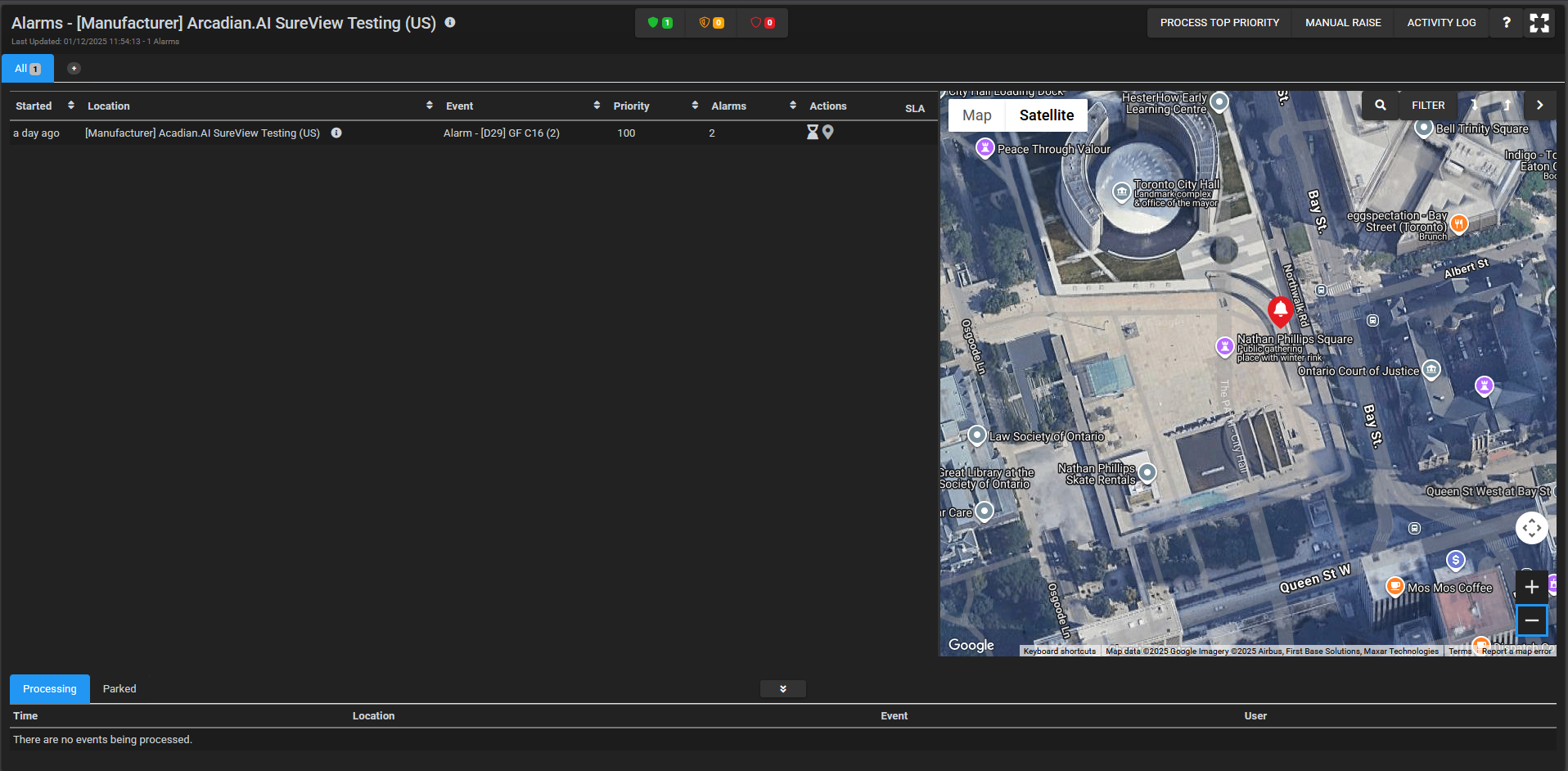

Below are screenshots of example test alarms being received from ArcadianAI into SureView
