This integration requires a Class 2 License and a OpsLink Server. Please contact your account manager for more details.
Native Integration: Supported Features
- Live Video
- Video Playback
- Pre Alarm Recording
- PTZ
- Preset Go To
- Get Config
- Sync
Native Integration: Requirements
License Requirements

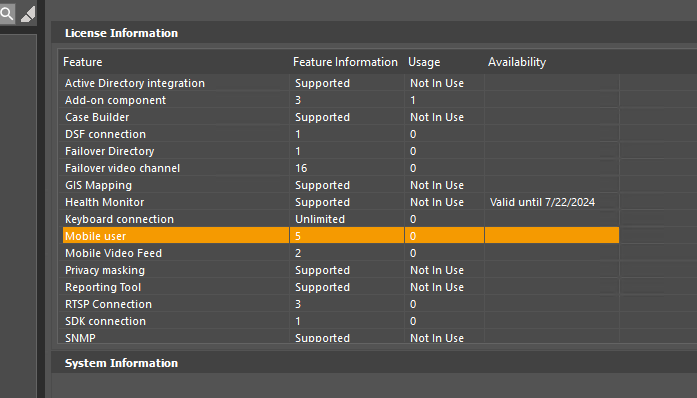

Mobile License for FLIR to be used by the SureView Integration User
Only one is needed for the SureView user, as it is shared between all connections with the same user. However, if other user accounts will log in via Mobile, you will need to ensure that you do not use all your licenses and leave SureView without one.
Network Requirements
| From | To | Port | Description |
| OpsLink Server | Flir Server | 1116 TCP | Flir API Port |
| OpsLink Server | Flir Server | 8080 TCP |
Live Video Streaming You don't have to enter this port into SureView. The port is automatically detected when SureView starts the live camera |
Native Integration: Sync Configuration
Using the SureView Advanced Device Setup go to the Sync Tab and add VideoEdge" as a new Sync System including the following fields
| Field | Value |
| Title | The user facing name of the system you are connecting to |
| Type | Flir Lattitude |
| OpsLink | The OpsLink server that has the Flir integration installed |
| Host | Host address / IP address of the Fir Server |
| Port | 1116 (Flir API Port) |
| Username | The username for Mobile License Enabled User |
| ExtraValue |
Leave Blank
|
Native Integration: Area Sync
Once you have saved your Sync Configuration (described above) you can then add the individual Area Syncs to synchronise March Cameras against individual Areas in SureView.
- Go to the Sureview "Syncs" tab (when adding or editing your Sync System)
- Click Add Area Sync
- Complete the Area Sync Fields
| Field | Value |
| Title | The friendly name for the Area Sync |
| Area | Which SureView Area should the sync use when adding doors/alarms etc |
| Identifier |
If you need to sync your Flir VMSA into different SureView Areas you can set up individual syncs with camera filters. If you want to sync ALL your VMS Cameras into a single Area then you can leave the identifier blank.
SiteNem Enter the Camera's Flir Site that you want to match to your SureView Areas Examples SiteName=Hawthorne*; // wild card on end
CameraName Enter the Camera CameraName that you want to match to your SureView Areas
Examples CameraName=Cam*; // wild card on end
The Sync identifiers can be combined for a more preceise match e.g. SiteName=Hawthorne House;CameraName=External*;
|
| Interval | How often should the system sync into SureView? default: 24 hours |
| Enabled |
Enable or Disable the automatic Sync default on |
| Allow Update Area | Allows the sync to automatically move synced cameras to a different area Default off recommended to keep off |
| Allow update Device Settings |
Allows the sync to automatically update the camera settings
recommended to keep off |
Native Integration: Troubleshooting
Authorization Failed error.
Each Flir user establishes a new connection. This error indicates that you have reached the maximum number of users allowed based on the number of mobile licenses you have.
