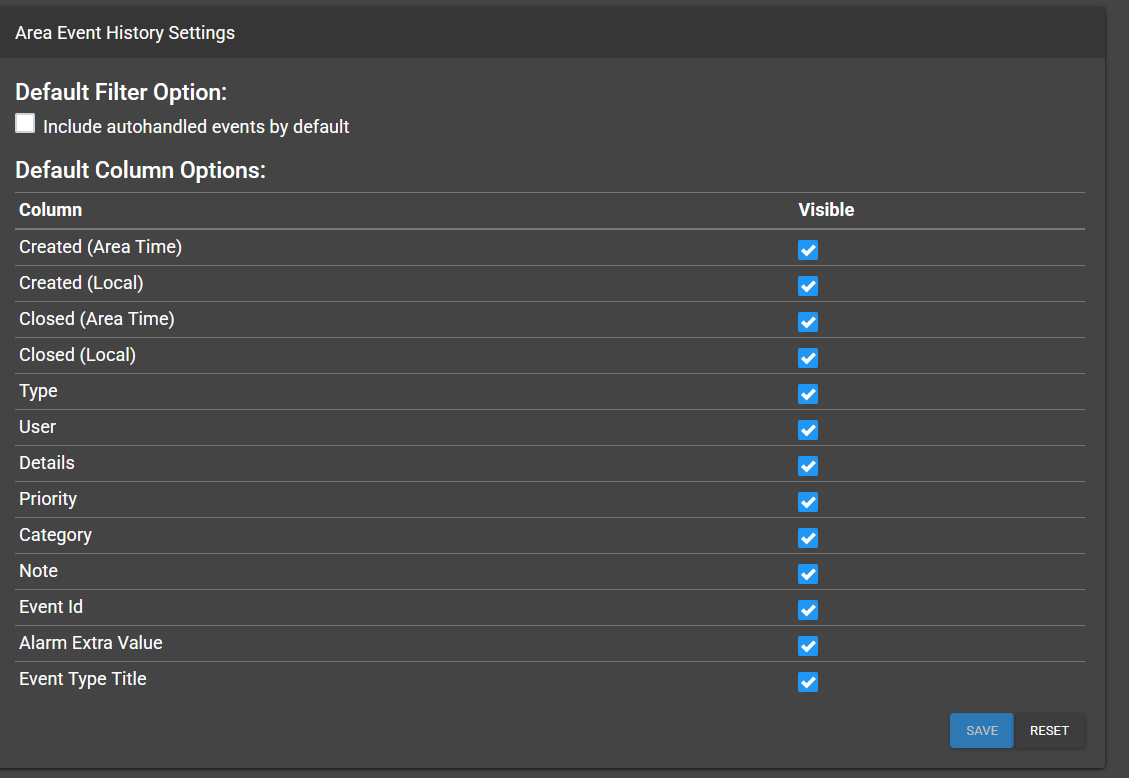

Admins can adjust the default display settings for the operator Area Event History tab (shown in the Area Details window) from the Organization Settings screen
| Include autohanded events by default | Recommended that this kept off. If enabled it the history will show autohandled alarms a by default s well processed alarms. |
| Created (Area Time) | Date Time the Event was created based on the Area's Timezone |
| Created (Local) | Date Time the Event was created based on the Area's Timezone |
| Closed (Area Time) | Date Time the Event was closed based on the Area's Timezone |
| Closed (Local) | Date Time the Event was closed based on the Area's Timezone |
| Type | Type of Log "Event" (alarm), "Masking" (any mask or unmask action) or "OnTest" |
| User | The user that processed the event |
| Details | Full details of the log including the alarm text |
| Priority | The priority of the alarm (where applicable) |
| Category | What Outcome Category was selected for the event |
| Note | The Operator's outcome notes |
| Event Id | The unique EventID - clicking this will open the historic event for review |
| Alarm Extra Value | The Alarm Points's ExtraValue (often used for device alarm matching) |
| Event Type Title | The Alarm Type (such as Door Forced) |
