Gallagher Security

Manufacturer: Gallagher Security (+​​1(800) 531-5908 | (816) 421-2005)
Product: Gallagher 8.7
Type: Device Integration & Alarm Receiver

Native Integration: Supported Features

The Gallagher Security integration supports the following features:

• Alarms
• Door Pulse
• System Synchronization
• Alarm Acknowledgement

Native Integration: Requirements

Version Requirements

Validated against Gallagher versions: 7, 8.7, 9.10

License Requirements

A fully licensed Gallagher server (License: C13008 REST API LIC BUNDLE)

Network Requirements

Finding the Gallagher Port

1. In Gallagher Command Center, click Configuration Client
2. In the File Menu click Server Properties
3. In the new Server Properties window click Web Services
4. Find the "REST API" Server Base Port (default 8904)

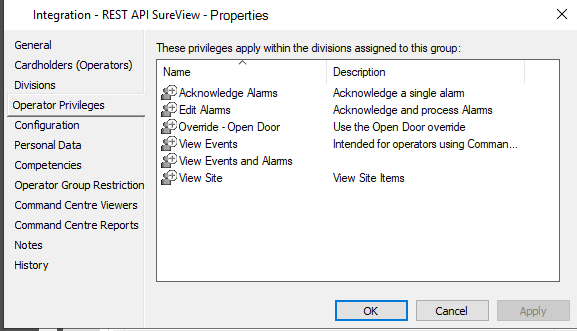

Permission Requirements

User configured on Gallagher with permissions for the alarms you want to receive in SureView

• Acknowledge Alarms
• Edit Alarms
• Override - Open Door
• View Events
• View Events and Alarms
• View Site

REST Client & API Key

To find the API Key you'll need to set up a REST Client.

1. In the Gallagher Command Center, click Configuration Client
2. Then click on the Configure menu and and choose Services and Workstations.

3. In the new window, click Add, then select Rest Client.

4. Set a REST Client Operator to a user that has permissions to access any alarm you want brought into SureView.

5. Copy the API Key from the API Key tab - You will use this as the "Password" when setting up Gallagher in SureView

Native Integration: Device Setup

Prerequisites

• An On-Premise SureView Device Server

Configuration

The following are the steps required to configured Gallagher to work with the Sureview.

Before you begin

Before you configure your Gallagher system to work with Sureview make sure you have the following:

• A fully licensed Gallagher server (License: C13008 REST API LIC BUNDLE)
• A configured SureView Device  Server with the "Gallagher" integration installed
• All required ports configured (see Components and Communication)
• A User configured on Gallagher with permissions for the alarms you want to receive in SureView
  • Acknowledge Alarms
  • Edit Alarms
    Override - Open Door
  • View Events
  • View Events and Alarms
  • View Site
• The Gallagher API Key associated with the User
• The List of Gallagher "DivisionIDs" that you want to Sync into SureView Areas

Finding the Gallagher Division ID

Native Integration: Device Setup

Note: Gallagher is an advanced integration and must be configured using the using advanced "Device Setup" page and the "Device Configuration" feature.

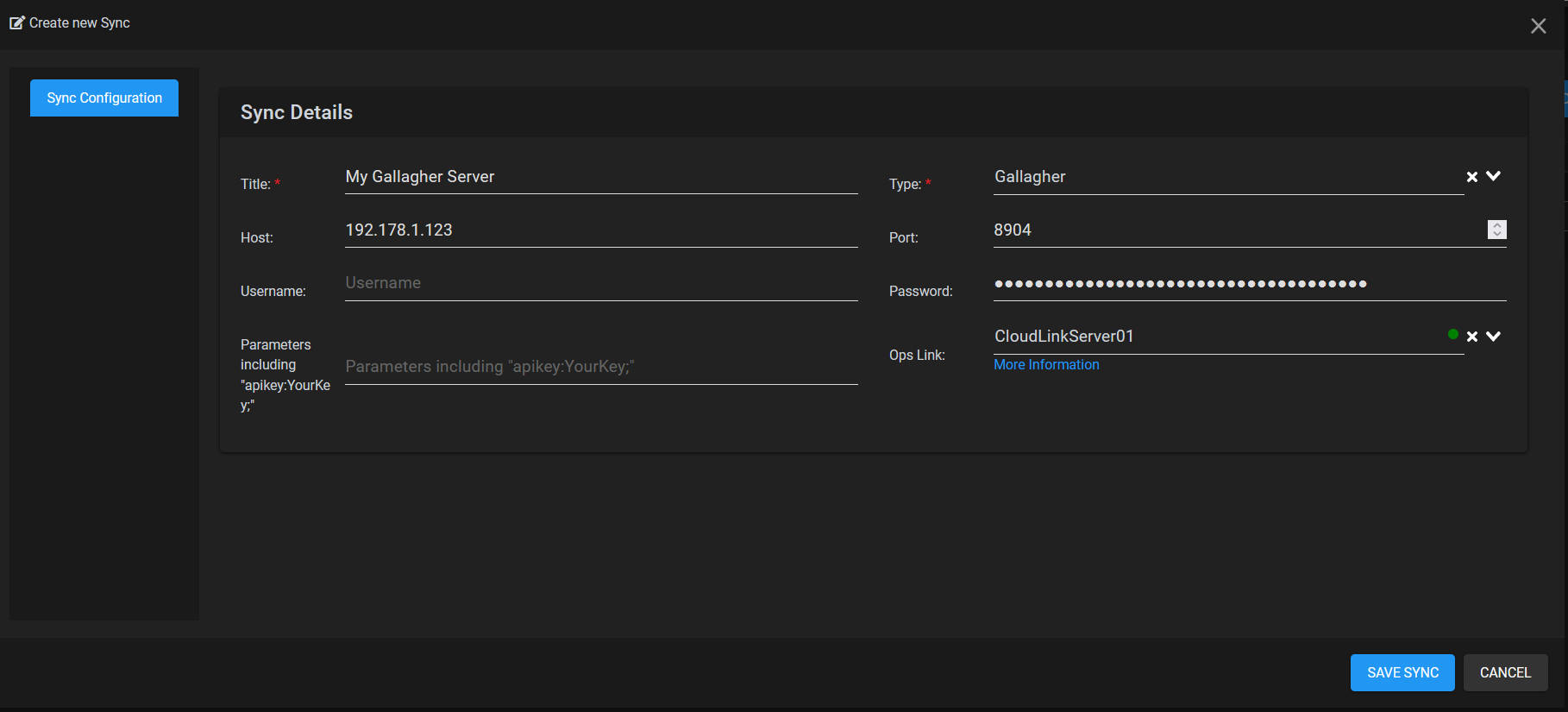

Sync Configuration

1. Device Setup
2. Sync Tab
3. Add device
4. Complete the Sync Fields


   Field	Value
   Title	The friendly name of the Gallagher Server you are connecting to
   Type	select "Gallagher"
   Host	The local IP or Host address of the Gallagher Server (from the perspective of the SureView Device 'CloudLink' server)
   Port	The Gallagher API Port - 8904 by default
   Username	leave blank
   Password	Your Gallagher API Key
   Parameters	Gallagher Alarm Instructions can be added to the Event Details based on the instructions parameter. Supported values are 'instructions=None;', 'instructions=Full;', or 'instructions=Name;' (default).
   OpsLink	The name of your connected SureView Device "Cloud Link" server. Note: This option is for SaaS customers only and will not be present or required for fully on-premise sureview deployments.



5. Press Save Sync

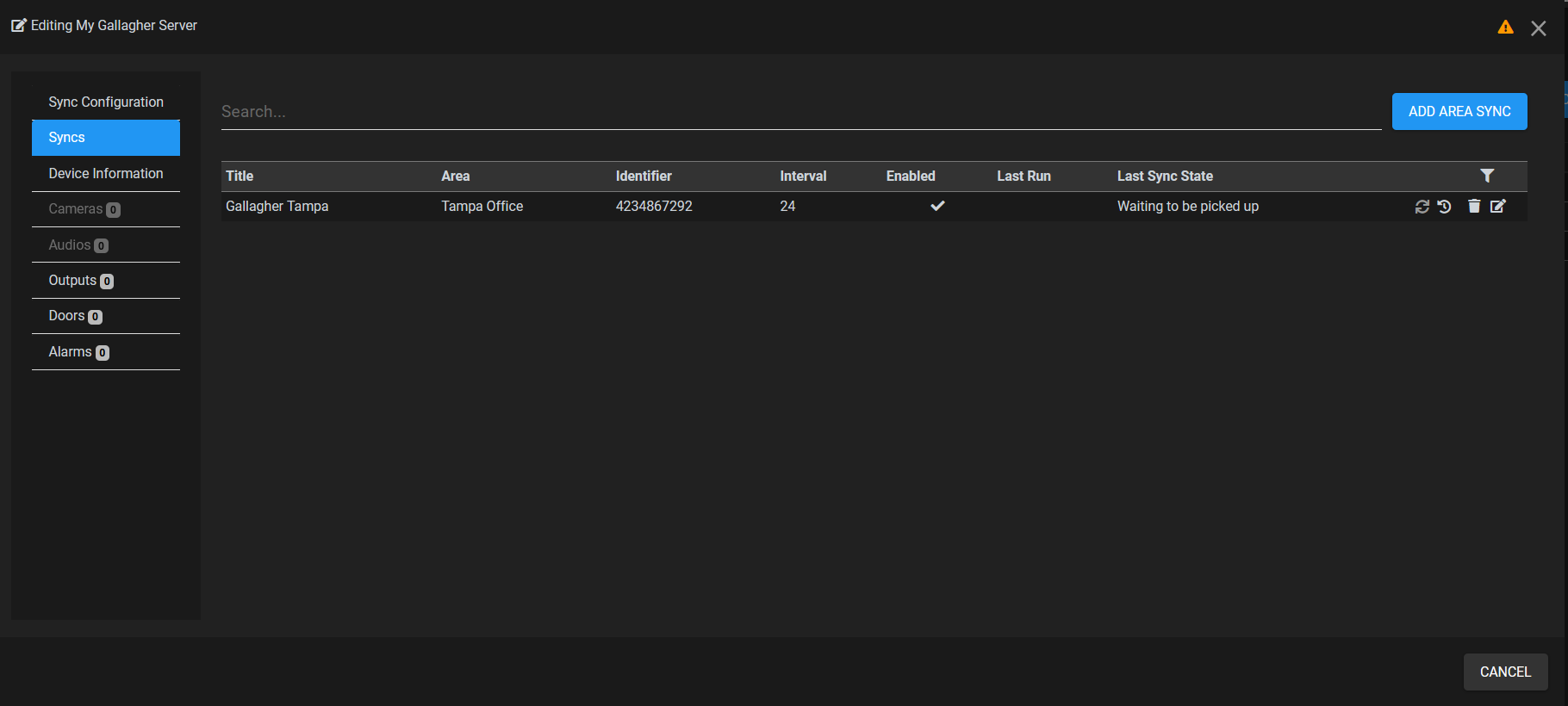

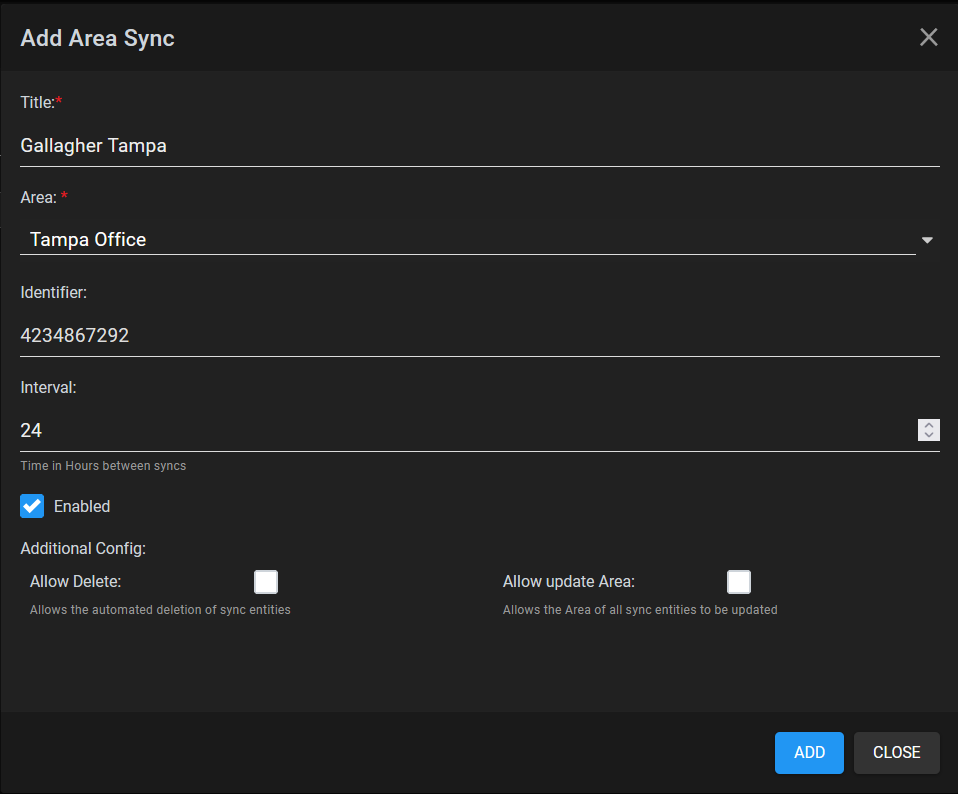

Area Sync

1. Go to the "Syncs" tab (when adding or editing your Sync System)
2. Click Add Area Sync
3. Complete the Area Sync Fields


   Field	Value
   Title	The friendly name for the Area Sync
   Area	Which SureView Area should the sync use when adding doors/alarms etc
   Identifier	The Gallagher DivisionID that you would like to sync against
   Interval	How often should the system sync into SureView? default: 24 hours
   Enabled	Enable or Disable the automatic Sync default on
   Allow Update Area	Allows the sync to automatically move synced doors/alarms to a different area Default off recommended to keep off
   Allow update Device Settings	Allows the sync to automatically update the door/alarm settings Default off   recommended to keep off

4. Press Add

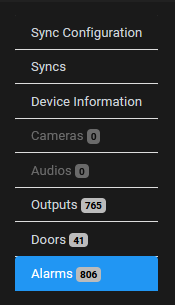

5. SureView will now automatically sync any Alarms/Doors into the appropriate Area(s) - this may take a few minutes to complete depending on the quantity of synced items. Once synced Gallagher will be ready to use and will start receiving SureView alarms.


6. Unmatched Alarm Configuration


   If a Gallagher alarm is received by SureView Response but there isn't a synced Alarm Point/Response configured then the alarm will be triggered against the "Root Device/Alarm"

   This could happen if only a few select Divisions/Areas have been Synced into SureView but the Gallagher API User has permission to receive alarms for other Divisions/Areas that haven't yet been set up in SureView.

   Go to the the Alarms section


7. Click Add Alarm
8. Complete the Create New Alarm fields


   Field	Value
   Area	Which Area the root alarms should be triggered against. Default/Recommended: Top Tenancy Level
   Event Type	Leave as: Default
   Title	The friendly name for the root alarm. Recommended: "Gallagher Root Alarm"
   Action Plan	The action plan that would be associated with unmatched root alarms. Optional
   Input 1:	Must be set to -1
   Input 2:	Must be set to -1
   Extra Value	Leave blank
   Priority	This is an indication of how important the unmatched alarms are. The higher the number, It's recommended that this is kept as low (0 - 99)
   Linked Camera	Leave Blank
   Grouping	This allows you to decide how you want multiple instances of this alarm to be grouped when it goes into the Alarm Processing Queue. The options are: By Area Multiple separate alarms that are triggered for the same Area will be grouped together for the operator to process as a single event. By Alarm Multiple instances of this specific point will will be grouped together for the operator to process as a single event. Not Grouped This alarm will never be grouped with any other. Each time it's triggered it will come into the Alarm Processing Queue as a separate, individual alarm event. Recommended: By Alarm
   Auto Handle	If these alarms should be automatically handled (not shown to the operator, but saved into the history) or not.   The options are Yes Automatically handle the alarms - do not show them to operators No Alarms should be shown to operators (if the alarm point isn't masked) Not Set Use the system default for Gallagher and their alarm types Recommended: Not Set

9. Press Save

Alarms

SureView automatically polls Gallagher for new Alarms every 0-2 seconds. Any alarms that the linked Gallagher User has permission to access which as corresponding synced Alarm Point in SureView will automatically trigger in the SureView Alarm Queue.

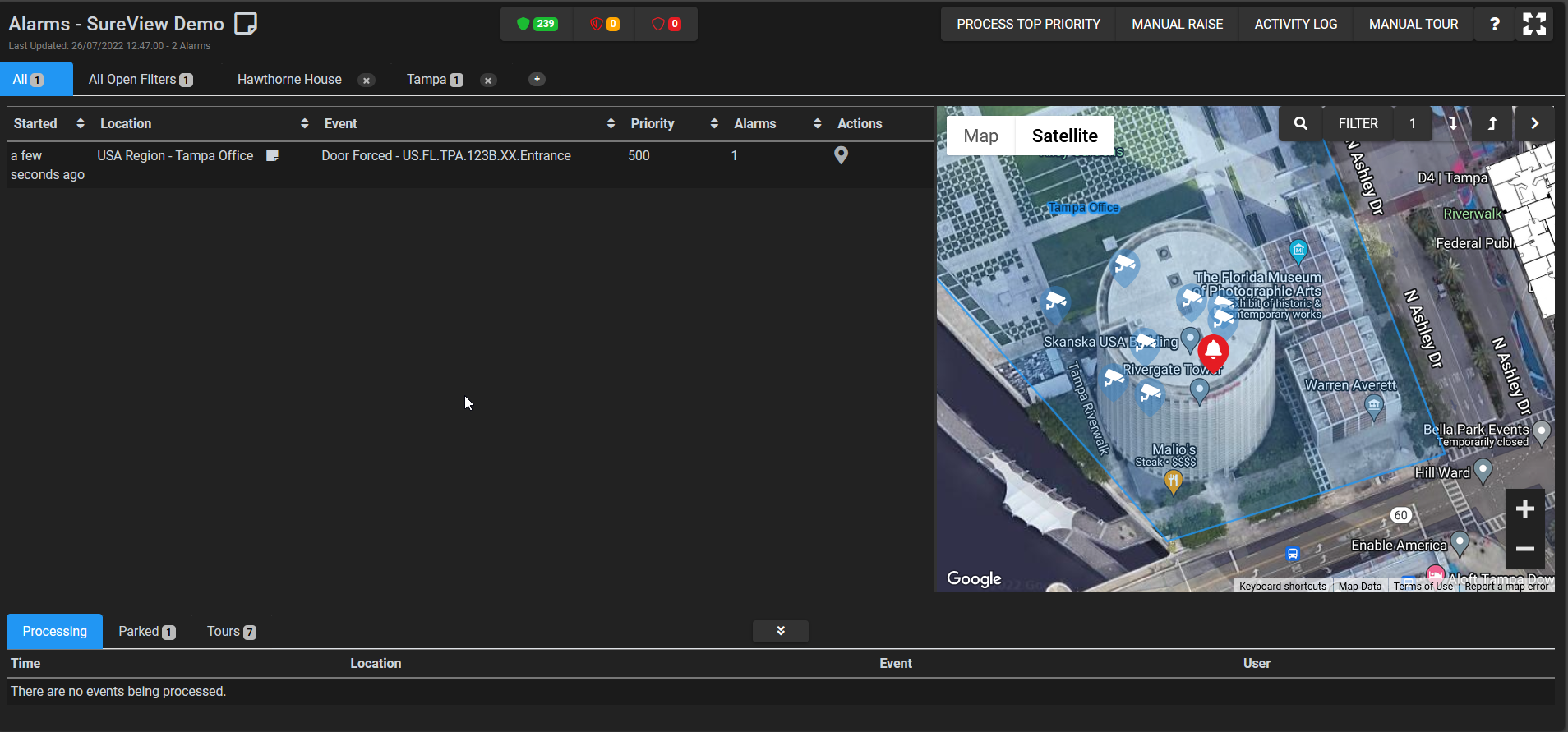

Event Queue

Event

Event Type - Alarm Title

Example

Door Forced - US.FL.TPA.123B.XX.Entrance

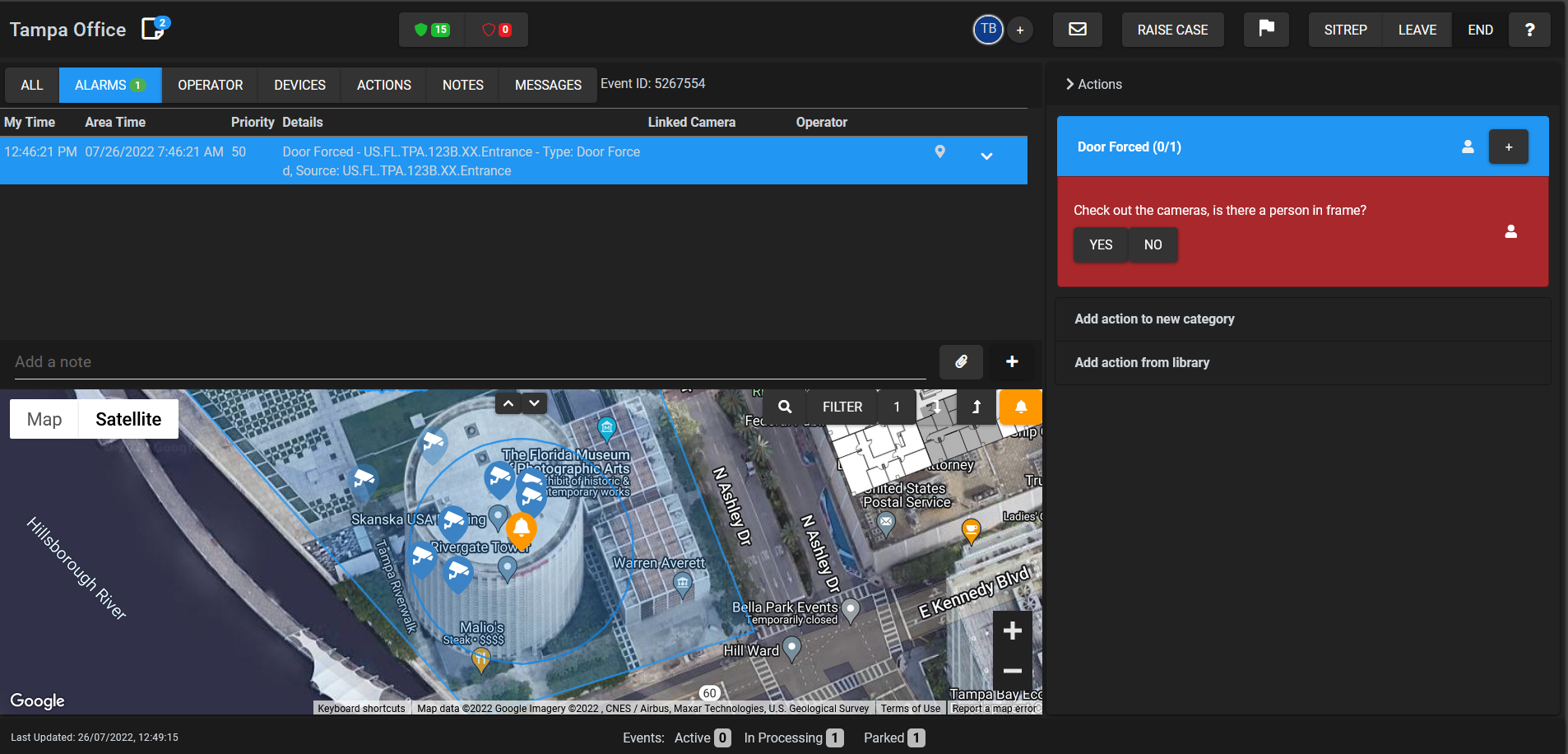

Alarm Processing Screen (Site Monitor)

Details
SureView Event Type - SureView Alarm Title - Type: Gallagher Event Type, Source:  Gallagher Source Name

Example

Door Forced - US.FL.TPA.123B.XX.Entrance - Type: Door Forced, Source: US.FL.TPA.123B.XX.Entrance

Note: In most cases the SureView Event Type and Alarm Title will match the Gallagher Event Type and Source Name. The extra information is provided so that if the SureView friendly names are customised the operator will still be able to see the original Gallagher text.

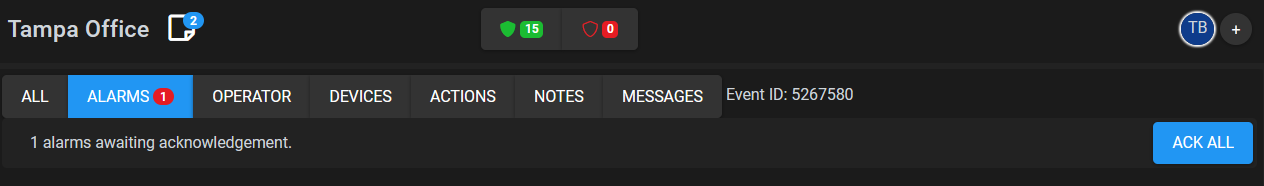

Alarm Acknowledgement

There are two options for Gallagher Alarm Acknowledgement

Option 1 - Basic Acknowledgement (default)

When Gallagher alarms are Acknowledged in SureView (by clicking on the alarm or clicking the "Ack All" button) the alarms will be automatically Acknowledged and Processed in Gallagher within 1 minute.

Note: Alarms can only be "Processed" in Gallagher automatically once the "causer" is no longer active.

Option 2 - Advanced Alarm Acknowledgement (optional)

Important: Advanced Alarm Acknowledgement must first be enabled on each Gallagher Sync System by the SureView Support Team. To request advanced alarm acknowledgement to be enabled please contact SureView Support

When Gallagher alarms are Acknowledged in SureView (by clicking on the alarm or clicking the "Ack All" button) the alarms will be automatically Acknowledged (including the name of the operator) in Gallagher within 1 minute.

When the Gallagher alarm event is closed in SureView (by clicking the "End" button) any associated Gallagher alarms will be "Processed" (including the name of the operator, outcome category and any outcome notes) in Gallagher within 1 minute.

Note: Alarms can only be "Processed" in Gallagher automatically once the "causer" is no longer active.

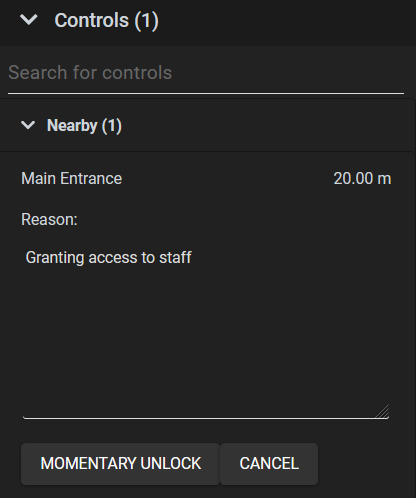

Door Control

Doors can be controlled with the "Momentary Unlock" feature from within Media Matrix

1. In the Media Matrix sidebar "Controls" section you can view all nearby doors or Search for a specific Door.
2. Click the Door you want to control
3. Provide a reason for the action
4. Click "Momentary Unlock"
   Note: Momentary Unlock  will "Pulse" the door, unlocking it for the duration configured in Gallagher

Alarm Instructions

Alarm instructions from Gallagher can be displayed within the SureView event. By default, the system will show the Name of the associated Alarm Instructions in the Event Details with the prefix "Instructions: ". This can be removed, if desired, by adding "instructions=None" to the end of the extraValue for the Gallagher Sync/Device. Supported values are Name (default), None, and Full (Show full instruction text).

Event Types & Gallagher Priorities

SureView Event Types for Gallagher are separated based on the event Priorities from the Gallagher system. Gallagher supports the following Priorities:

• 9: Critical
• 8: Very High
• 7: High
• 6: Medium High
• 5: Medium
• 4: Medium Low
• 3: Low
• 2: Very Low

Each has a corresponding Event Type on the Event Type configuration page in SureView (US or EU). These Event Types can be assigned different properties, such as Action Plans, Event Queue Priorities, AutoHandle/Ignore behavior, and so on.
