Hanwha

Native Integration: Supported Features

• Live Video
• Camera Playback
• PreAlarm Recording (SureView Response Pro Tier Only)
• PTZ
• Get Configuration
• Sync
• Alarms (Email/SMTP)

Native Integration: Requirements

SureView Enterprise (On-Premise) Component Requirements
(in addition to standard SureView Device Server Components)

• CC-DEVICE-HanwhaNVR
• CC-Device-HanwhaNVRSessionManager
• CC-CORESERVICE-EnterpriseIntegrationHost
  Note: Enterprise Integration Host must have a valid database connection string entered into it's config file

License Requirements

N/A - No manufacturer license required

Network Requirements

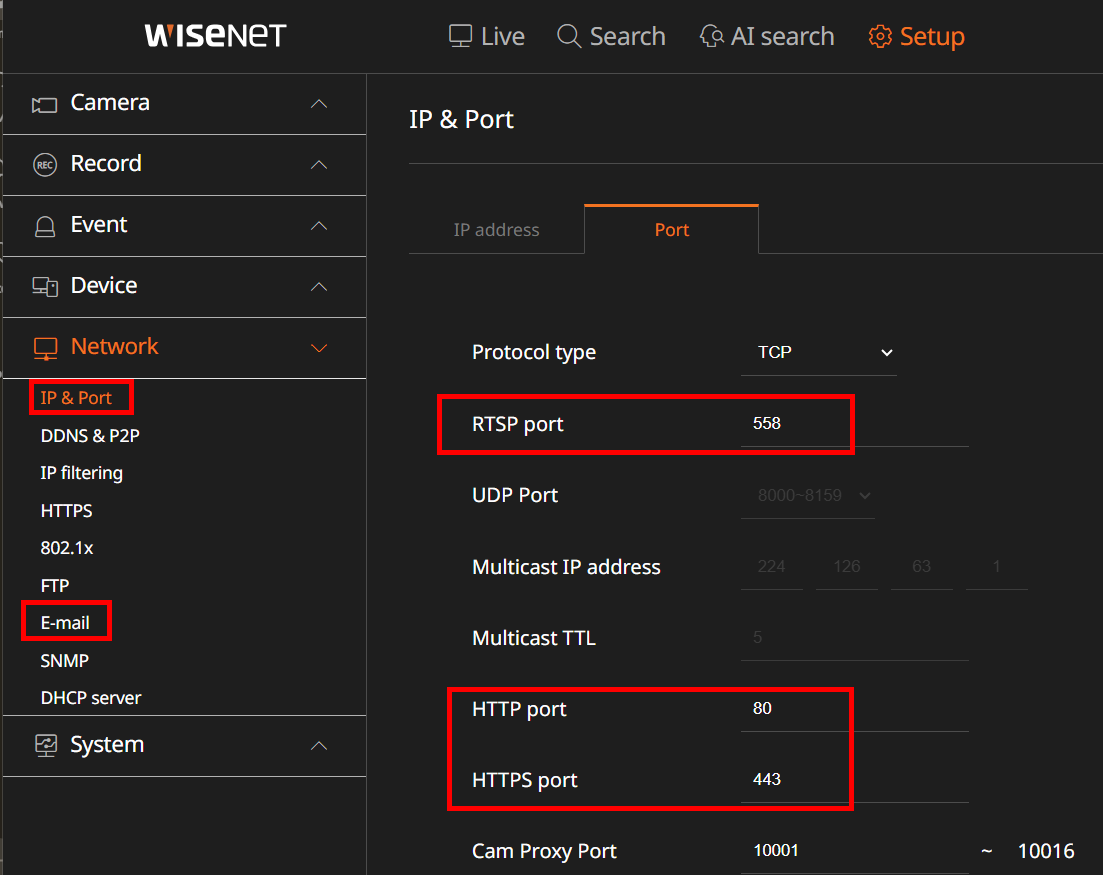

Ports can be configured on the Hanwha NVR by going to

1. Hanwha NVR Interface
2. Setup
3. Network
   1. IP & Port
      (HTTP port / HTTPS port & RTSP Port)
   2. E-Mail
      (smtp port)

Camera Stream Requirements

Hanwha Live Video Profile: H.264

Native Integration: Device Setup

Enterprise Integration Host

It is required to create an empty device for the Hanwha Session Manager server type. This allows for reusable Hanwha sessions, eliminating the connection restrictions.

Important: You only need to add one Hanwha Session Manager. Once setup you can skip this step for all future Hanwha NVRs

1. Setup: Devices
2. Devices Tab
3. Add device

4. Complete the Device Details Fields

   Field	Value
   Title	Hanwha Session Manager
   Area	Your top level area / account
   Type	select "Hanwha Session Manager"
   Host	Leave Blank
   Port	Leave Blank / 0
   Username	Leave Blank
   Password	Leave Blank
   ExtraValue	Leave Blank

5. Press Save

Setting up your Hanwha NVR in SureView

1. Setup: Devices
2. Devices Tab
3. Add device

4. Complete the Device Details Fields

   Field	Value
   Title	The friendly name of the Hanwha NVR you are connecting to
   Area	The Area the Hanwha NVR will be added to
   Type	select "Hanwha"
   Host	The local IP or Host address of the Hanwha Server (from the perspective of the SureView Device Server)
   Port	The Hanwha Web Port - 443 by default
   Username	Your Hanwa Username
   Password	Your Hanwha NVR Password
   ExtraValue	This allows you to configure which cameras you want to load to the system with the Get Config (or sync) features.   Filter by camera name Note: You can use * as a wildcard filter Example CameraName=*Door*   Would match  Front Door Back Door Door - Interior    Filter by Camera Channel ID Example cameraChannel=1 Would only load Camera 1   Camera State Allows filtering of Cameras by state. Possible Options: On (Sync only On/Active Cameras), Off (Sync only Off Cameras), All (Sync On and Off Cameras)   Example cameraSate=All Will load all cameras    Recommended Value cameraState=All This will allow the Get Configuration feature to load all cameras regardless of their name, channel or camera state



5. Press Save
6. Make a note of your device ID shown at the top of the device setup box "Device xxx Details"
   You will need the number when configuring the Hanwha to send alarms
7. Press Get Configuration to load and add the required cameras and alarm points

Native Integration: Setup Live Camera Streaming

The cameras will load automatically with the Get Configuration / Sync feature. But for reference these are the values that will get automatically populated

Native Integration: Setup Alarm

Login to Hawha Web Interface...

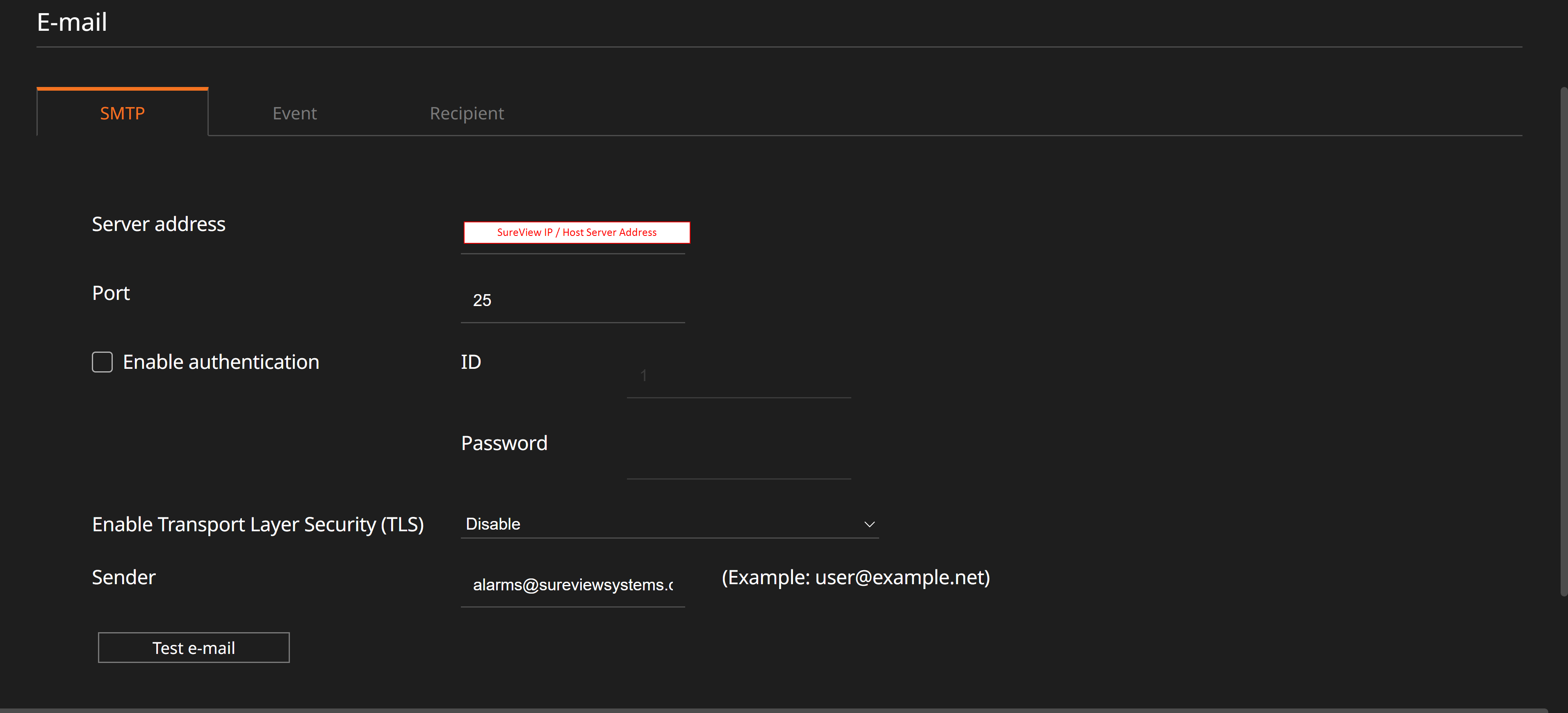

Configure the SMTP connection details...

Navigate to:

1. Setup
2. Network
3. E-mail

Fill out the inputs:

• Server address: Your SureView Host Address
• Port: 25
• Sender: alarms@sureviewsystems.com


Configure Event Sending Interval

Navigate to Event tab

• Delivery interval is the time between each alarm being sent. (This is to avoid runaway alarms)
• Set the delivery interval in:
  • Seconds: Alarms will not include attached image snapshot
  • Minutes: Alarms will include attached image snapshot (but have longer in-between alarms)

Recommended value: 5 seconds

Configure Recipients (TO email addresses)

Important: You need to configure one recipient group per camera

Navigate to Recipient Tab

1. Click the left + icon to add a group.  Give it the same Name as the camera you are configuring e..g. "Camera 1"

2. Click the right + icon to add a recipient
3. Select the Camera Group you created in step 1
4. Enter the same name in the name field e.g. "Camera 1"
5. Enter the email address S(DeviceID).A(CameraChannelNumber)@sureviewsystems.com
   e.g. for Hanwha DeviceID 123, Camera Channel 0 (camera 1) - S123.A0@sureviewsystems.com

   Your Device ID can be found when editing the Hanwha NVR device in SureView Setup


Repeat this for each Camera on your NVR

Important note

Hanwha Cameras index from 0

Channel 0 = Camera 1

Channel 1 = Camera 2

Channel 2 = Camera 2

Configure Events

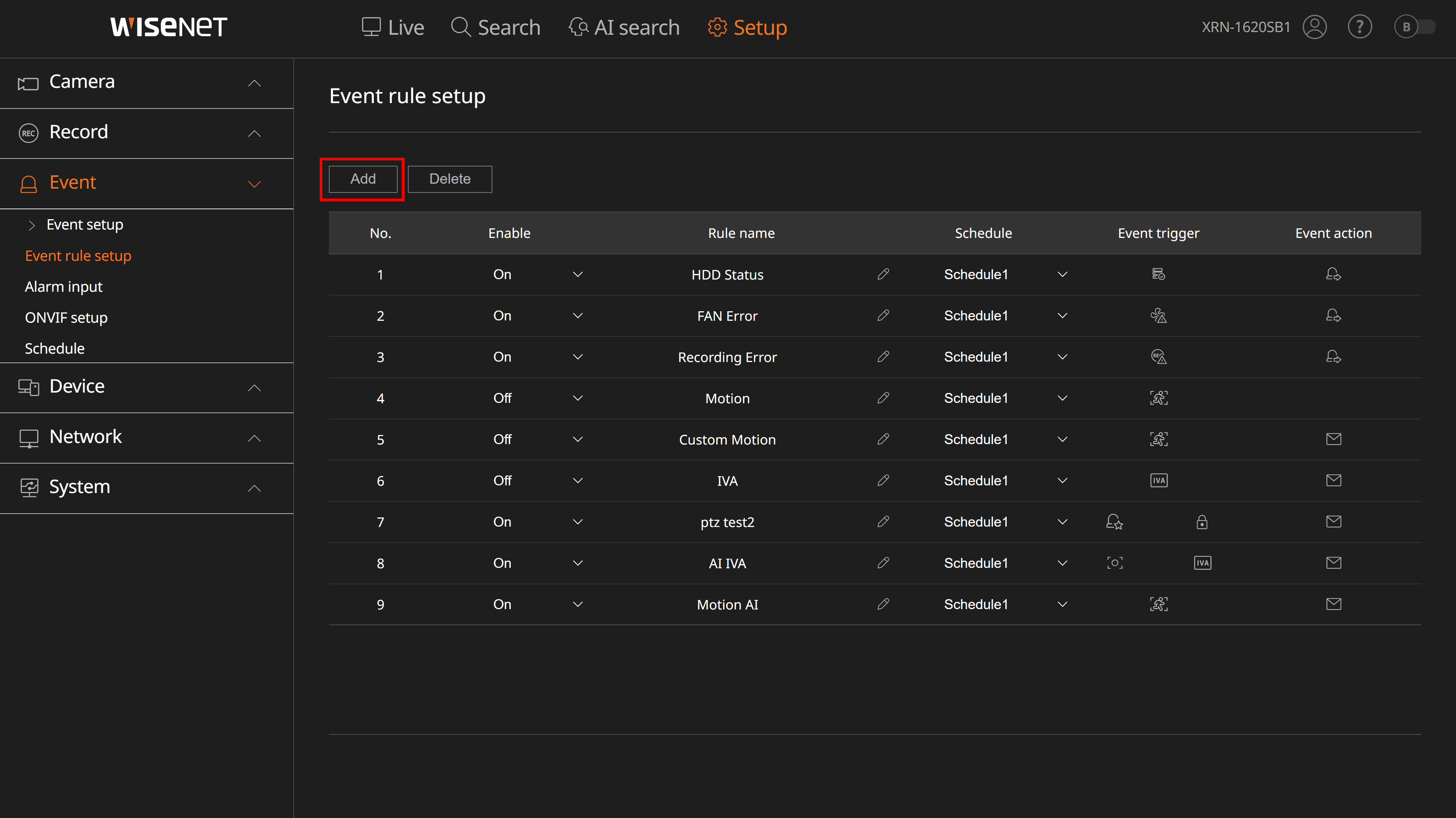

Navigate to

1. Setup
2. Event
3. Event rule Setup

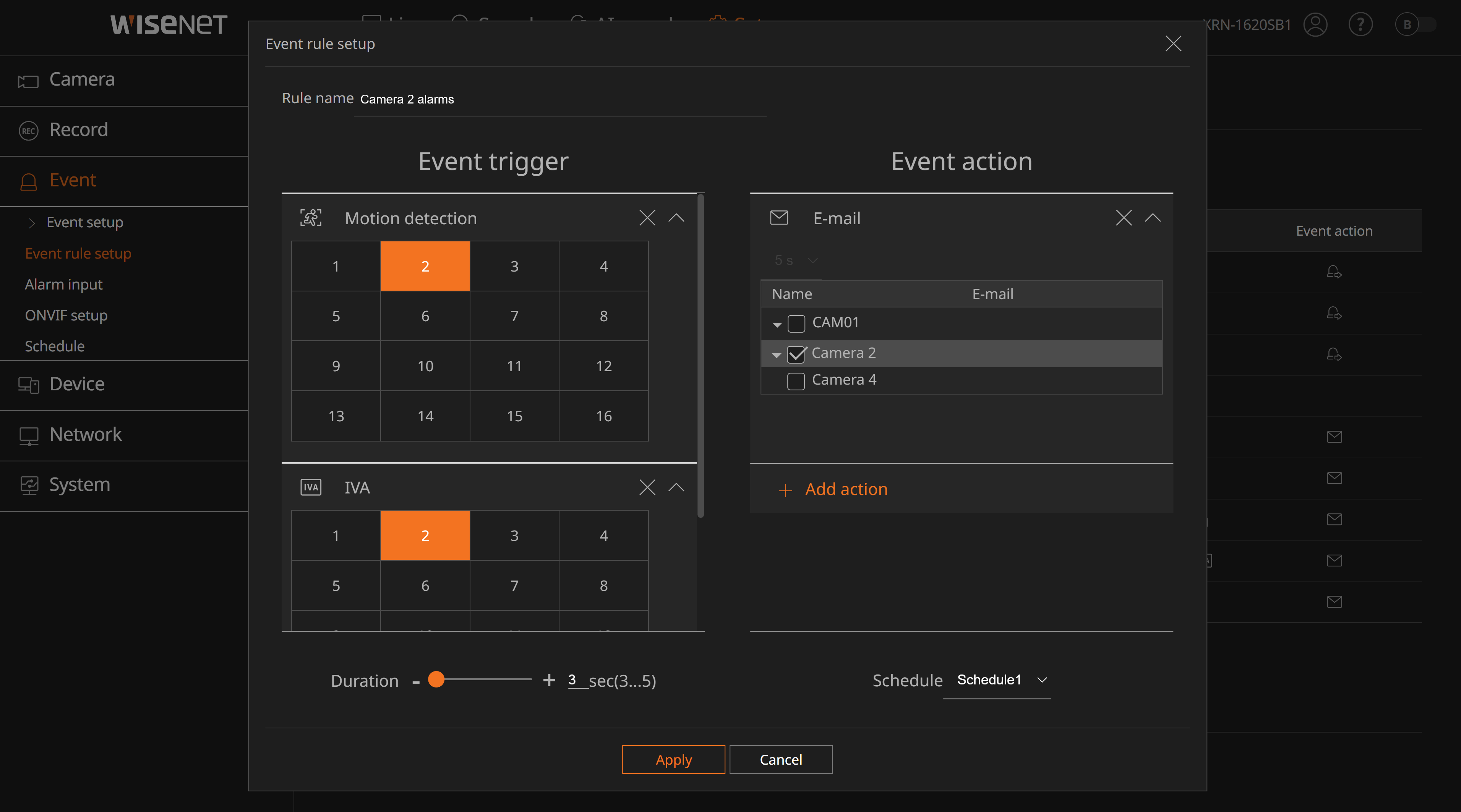

Important: you need to create triggers for each camera you want to alarm in

1. Click Add

2. Click Create rule (or Copy Rule when setting up alarms for multiple cameras)
3. Enter a rule name such as "Camera 1 alarms"
4. Click Add Trigger
5. Select the Trigger Type (such as Motion Detection)
6. Click the Camera number that matches the camera you're configuring
7. Repeat step 4 for each alarm type you the camera to alarm in using.
8. Click Add Action
9. Click E-mail
10. Select the Email Group that matches the camera you're configuring
11. Select any alarming schedule that you have
12. Press Apply

13. Repeat for each alarming camera
