The following are the steps required to configured i-Pro work with the Sureview.

Before you begin

Before you configure your i-Pro system to work with Sureview make sure you have the following:

• An Ops Link installed on to the local network

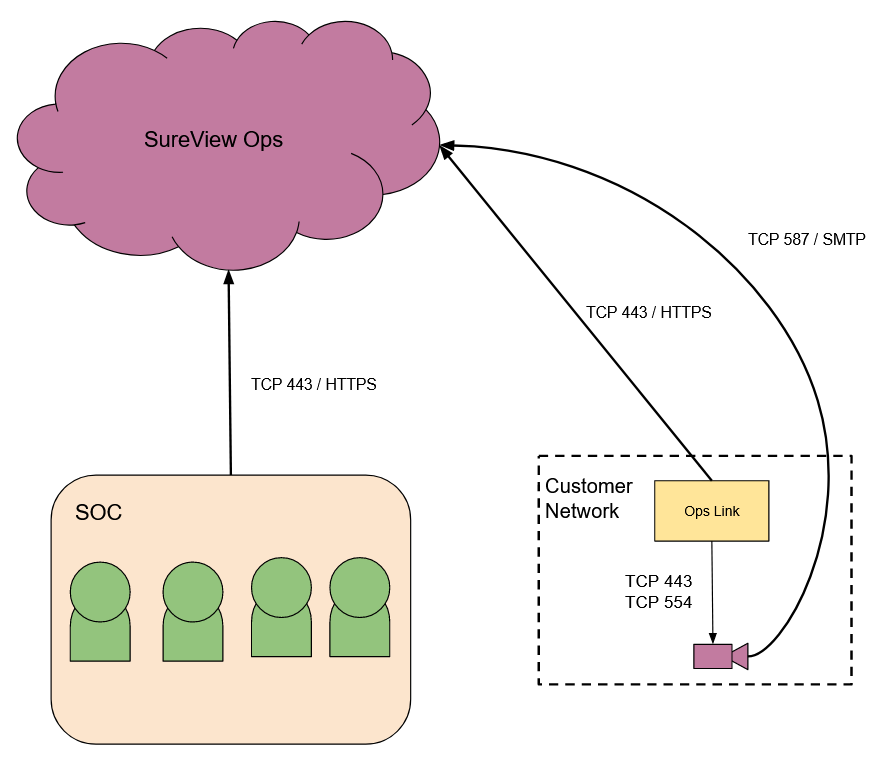

• All required ports configured (see Components and Communication)
• Username and password of your i-Pro Camera(s)
• Camera Stream set to H.264 with a maximum resolution of 1280x720 and max 10 fps
  SureView Ops Ops only permits video encoded as H.264 to be streamed from cameras and video systems. See Video Requirements

• ONVIF is enabled

i-Pro Configuration

Enabling ONVIF

1. Login to the Web Interface of the i-Pro Camera

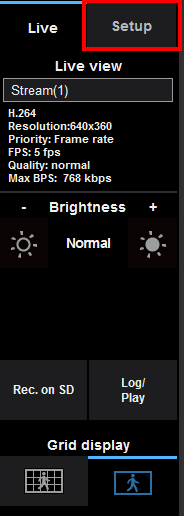

2. Click Setup in the Side Bar Menu

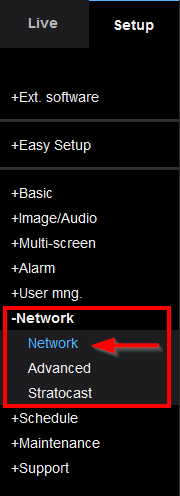

3. Expand the Network section and click "Network"

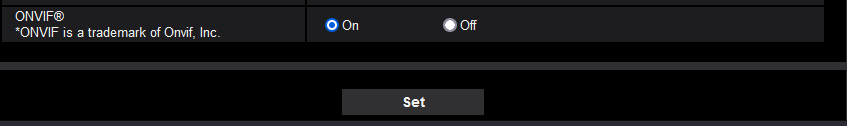

4. Scroll down to the bottom of the page and make sure ONVIF is set to On

5. Press Set

Setting Stream Type / Quality

1. Login to the Web Interface of the i-Pro Camera
2. Click Setup in the Side Bar Menu

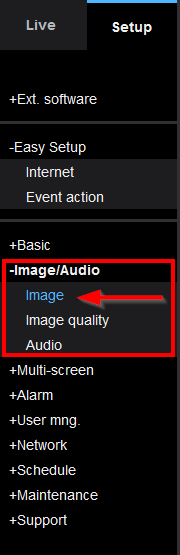

3. Expand "Image/Audio" and click "Image"

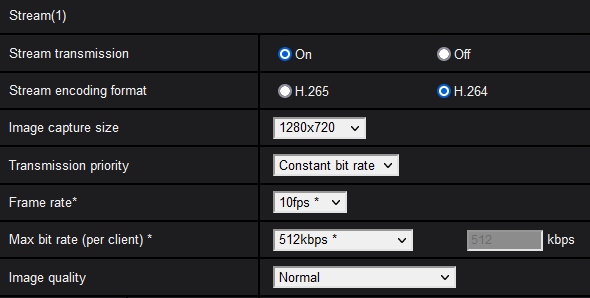

4. Scroll to "Stream(1)" and make sure the following settings are selected
   Stream transmission: On
   Stream encoding Format: H.264
   Image Capture Size: 1280x720 (or lower)
   Transmission priority: Constant bit rate
   Frame Rate: 10fps (or lower)
   Max bit rate: 515KB (or lower)
   Image Quality: Normal (or lower)


5. Once finished. Press Set

Standards: Email Alarms

Note: You must setup your SureView Email Alarm Points before configuring the i-Pro camera to send email alarms. Please see the Email Alarm Setup support page for more details

1. Login to the Web Interface of the i-Pro Camera
2. Click Setup in the Side Bar Menu

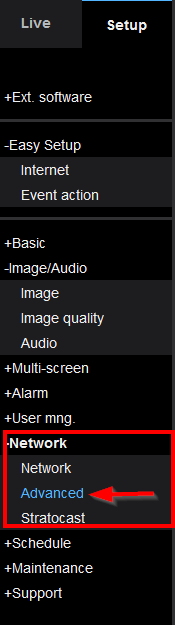

3. Expand "Network" and click "Advanced"

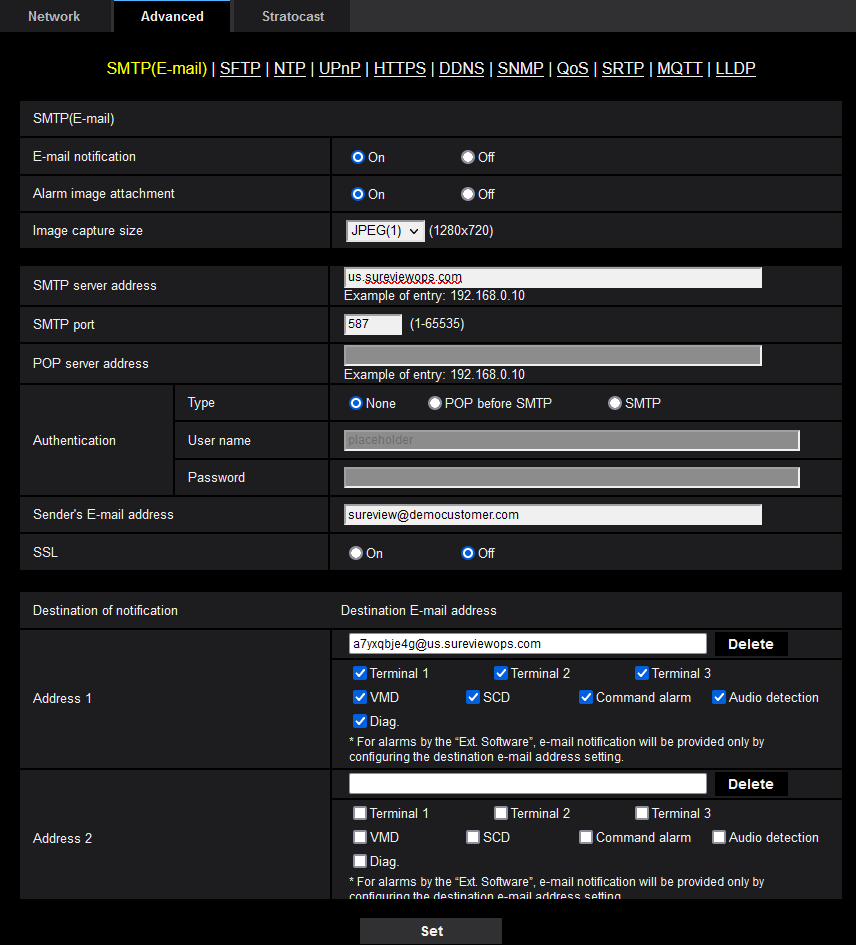

4. In the SMTP(E-mail) section make sure the following settings are selected
   E-mail notification: On
   Alarm image attachment: On
   Image capture size: JPEG(1) (1280x720) - or lower
   SMTP Server address: us-smtp.sureviewops.com (if your Ops account is held in the US)  OR eu-smtp.sureviewops.com (if your Ops account is held in the EU
   SMTP Port: 587
   Authentication: None
   Sender Email-Address: sureview@yourorganisationname.com
   SSL: Off

   Destination of notification (Address 1)
   Destination E-Mail Address: Your unique SureView Alarming Email Address (see Email Alarm Setup support page) - it will look something like a7yxqbje4g@us.sureviewops.com OR a7yxqbje4g@eu.sureviewops.com)
   Tick all required notification checkboxes (if unsure, tick all of them)

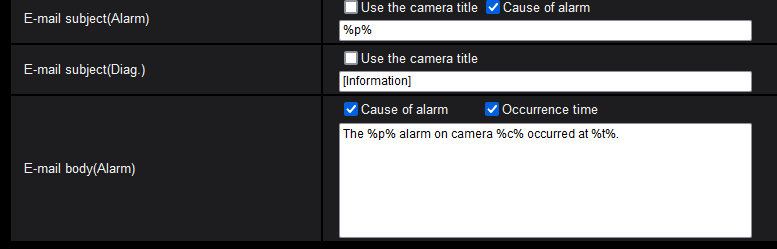

5. Scroll down to the "Email subject" and "Email body section" and set
   E-mail subject(Alarm):  %p%
   E-mail subject(Diag): [Information]
   Email: Body(Alarm)  The %p% alarm on camera %c% occurred at %t%.

   Anything you put into the Email "Subject" will be shown to the Operator as the Alarm Text

   Anything you put into the email body can be expanded by an operator when they want to view more details (but isn't shown automatically)


6. Click the Set button

SureView Configuration

Follow the steps on the Video Device (Cameras) Setup and Email Alarm Setup support pages

RTSP Port

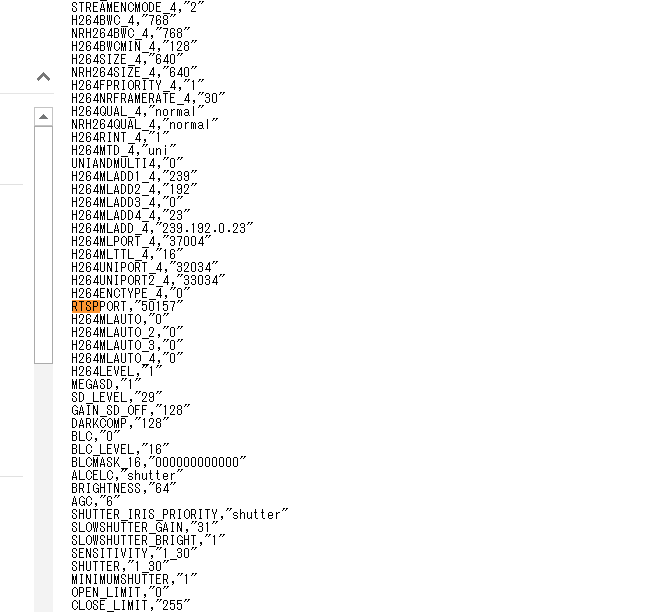

Ops Link  will automatically detect the camera's RTSP Port but if configuring manually you can find i-Pro's RTSP port by going to the cameras' getdata page

http://host:webport/cgi-bin/getdata

e.g.

https://address/cgi-bin/getdata

then search for "RTSPPORT"

RTSP URL

Ops-Link will automatically detect the camera's RTSP URL but if configuring manually i-Pro's RTSP url should be set to: Src/MediaInput/h264/stream_1
